Air EdgerTM Flat Jet Nozzles

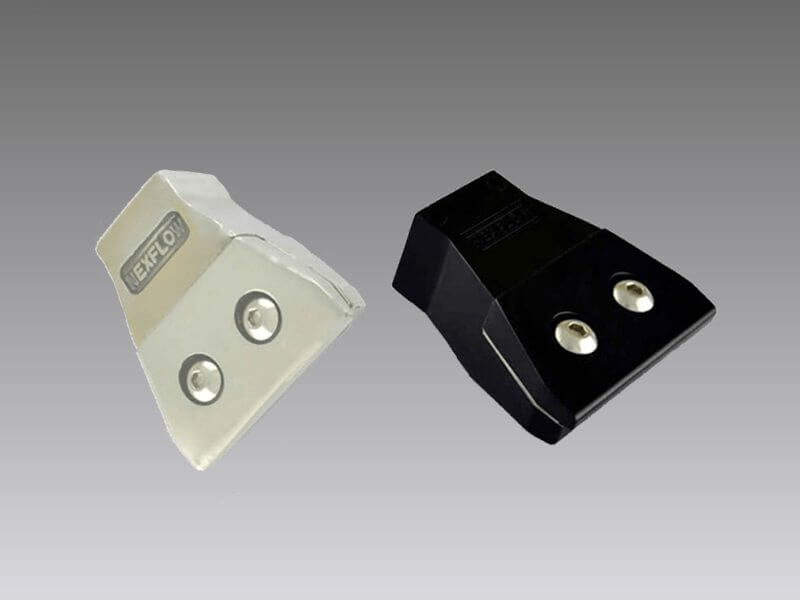

flat jet air nozzles

PRODUCT OVERVIEW

Model 47011 Air Edger™ Flat Jet air nozzle is  designed to provide a powerful stream of high velocity laminar flow and high force for blow off and cooling where air knives may not be enough.

When bench tested against several other flat jets, even those with special designed holes or shims, the Air Edger™ Flat Jet outperformed them all despite whatever claims others may make. Air consumption and noise levels are minimized with its special design and configuration.

The Nex Flow™ Air Edger™ Flat Jet is available with various size “gaps” all set by a flat shim. Three standard shim sizes are available – .004” (.10 mm), .008” (.2mm) and .020” (.51 mm). One, two or more shims can be “stacked” for a larger gap and greater force.

flat jet nozzles

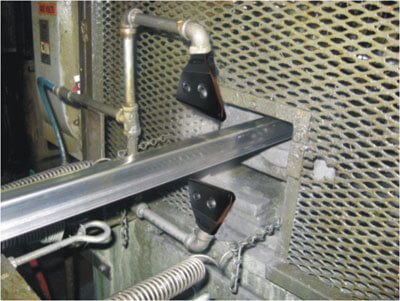

Air Edger blowing off dirt and debris on a metal extrusion line

flat jet nozzle

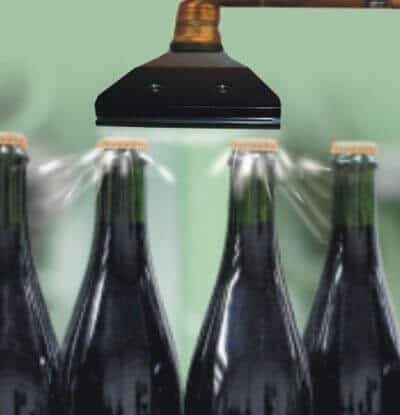

Air Edger blowing off water from under caps on a high speed bottling line

APPLICATIONS

  • Part cleaning
  • Chip removal
  • Part drying
  • Part ejection
  • Air assist

ADVANTAGES

  • Reduced compressed air cost
  • 10 dBA average noise reduction
  • Conserve compressed air
  • Compact
  • Improved safety
  • Meets OSHA noise level requirements
  • Improved production

MODEL NUMBERS

47011-4 – Air Edger™ Flat Jet with .004” gap setting
47011-8 – Air Edger™ Flat Jet with .008” gap setting
47011-12 – Air Edger™ Flat Jet with .012” gap setting
47011-16 – Air Edger™ Flat Jet with .016” gap setting
47011-20 – Air Edger™ Flat Jet with .020” gap setting
47011-24 – Air Edger™ Flat Jet with .024” gap setting
47011-28 – Air Edger™ Flat Jet with .028” gap setting

VIDEOS

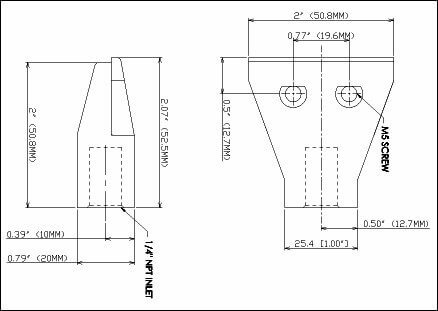

DIMENSIONS

PERFORMANCE

If you are not sure of which level of power you need, we recommend a Model 47211S Shim Set consisting of 2 – .004” shims, 2 – .008” shims and 1 – .020” shim and any two shims (or more) can be stacked to set the gap best suited to your application.

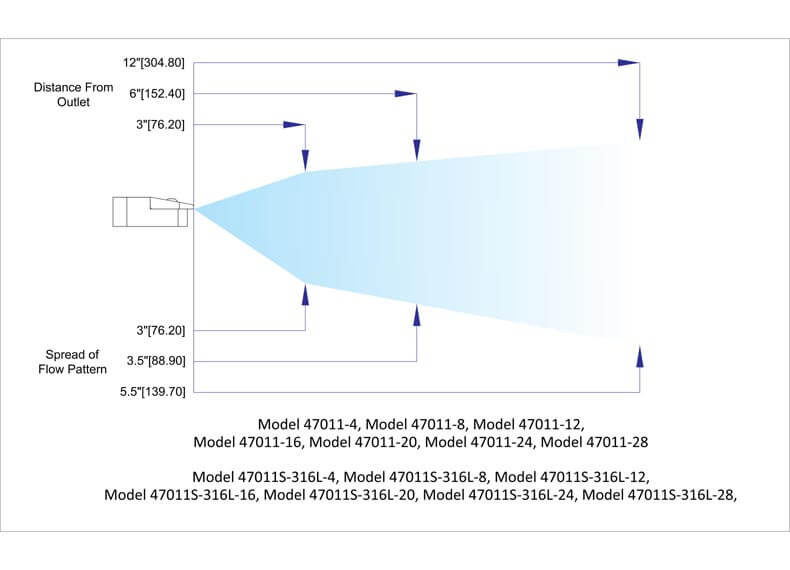

Flat Jet Profile

Model SCFM (SLPM) at 80 PSIG – Measured at entrance to jet Force in ounces (grams) at 12” from target
47011-4 20.5     (581) 12 (340)
47011-8 31.3     (887) 21 (595)
47011-12 38.5  (1091) 27 (765)
47011-16 41.0 (1161) 30 (850)
47011-20 44.5 (1261) 33 (936)
47011-24 47.0 (1331) 36(1020)
47011-28 51.0 (1445) 39 (1106)
Compared to the Competition

It is not always clear how tests and measurements are made by competitors and therefore validating claims can be difficult since such values depend on how tests are done. Therefore we measured a competitive unit under the same conditions as we measured our units. The flat jet of the competitor is of a similar type except that they are using a saw tooth shim design and different internal dimensions. We obtained the following readings when measured using the same parameters as for Nex Flow units.

25.1 SCFM – 15 oz force (Published figures were 22 SCFM and 22 Oz force)

The force/SCFM is aratio of .54  as measured the same way as the Nex Flow Air Edger™

One measure of efficiency is the ratio of Force/Air Consumption. The higher the ratio the better the efficiency.

If we compare to that of the Nex Flow Model 47011-4 the ratio is 12/20.5 = .58

And for the Model 47011-8 the ratio is 21/31.3 = .67

In both cases the efficiency of the Nex Flow units are higher in the comparative tests done. Under the same conditions
