Compact Sound Meter
PRODUCT OVERVIEW
X-Stream™ Sound Level Meter is used to measure and monitor the sound level in all types of industrial environments. Used for compressed air exhaust noise measurement it can identify areas where costly and inefficient blow off can be replaced by energy efficient Nex Flow™ blow off products. In many instances, noise may be reduced by amplification products as much as 10 dBA, to protect workers from excessive and damaging noise levels and reduce energy use.

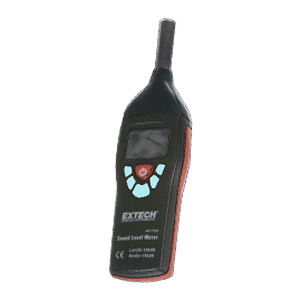

Model 91004
Low/High Range Sound Level Meter Dual-range Type 2 digital sound level meter with backlit LCD

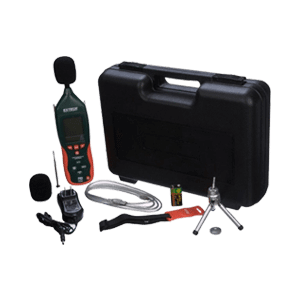

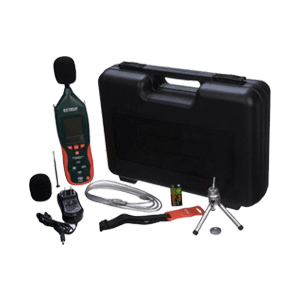

Model 91005
Data logging Sound Level Meter Stores up to 20,000 records with real date and time Stamp Meets ANSI and IEC61672-1 Type 2 standards
Model 91004
- High accuracy meets ANSI and IEC 651 type 2 standards
- High and Low measuring ranges
- Data Hold and Max Hold functions
- Backlit display to view in dimly lit area
- Complete with microphone wind screen and 9V Battery
Model 91005
- 30 to 130 dBA range with 1.4 dBA accuracy
- Meets ANSI and IEC61672-1 Type 2 standards
- Data logging capability up to 20,000 records at speed from 1/sec to 1/59sec
- Capture up to 10 reading/sec when connected to a PC
- MIN/MAX, Data Hold, Auto power off
- Built-in USB port, double molded housing with built-in stand
- Complete with AC adaptor, Windows® compatible software, USB cable, wind cover, tripod, 9V battery and
hard carrying case
Model 91004
- Display Counts 2000 count LCD
- Range Low: 35 to 100 dBA
- High: 65 to 130 dBA
- Basic Accuracy ±1.5 dBA
- Weighting (A & C) Yes
- Response Time (Fast/Slow) Yes
- Condenser Microphone 0.5″ (12.7 mm)
- Dimensions 8.2×2.1×1.25″ (210x55x32 mm)
- Weight 8.1 Oz (230 gm)
Model 91005
- Range 30 to 130 dBA
- Basic accuracy ±1.4 dBA
- Weighting A and C
- Response Time Fast/Slow
- Analog Output AC/DC
- Data logging 20,000 points
- PC Interface USB
- Dimensions 10.9 x 3 x 2″ (278 x 76 x 50 mm)
- Weight 12.3 Oz (350 gm)
