Blind Hole Cleaning System
PRODUCT OVERVIEW
Blow dirt, chip and debris out of deep blind holes in one easy step. Can clean holes up to 1 inch diameter and 20 inches deep.! Blow guns alone can create potentially hazardous flying debris. All the debris is contained within the unit and passed into a reusable collection bag, protecting the operator.

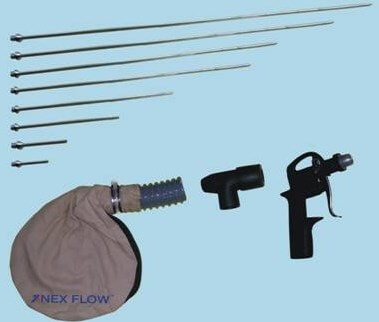

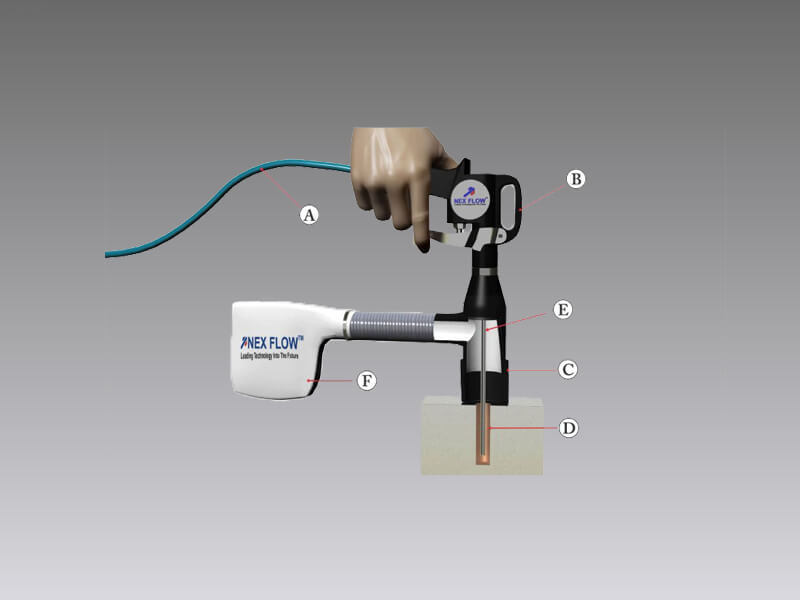

The Blind Hole Cleaning System consists of a Blind Hole Gun assembly, an adaptor for the diameter of the hole and the nozzle for the particular depth range of hole. The Blind Hole Cleaning Kit includes all hole diameter adaptors, all nozzles as well as a water removal filter with auto drain.
APPLICATIONS
- No moving parts
- Driven by air and not electricity
- Aluminum cast construction
- Lightweight and portable
- Various packages available depending on hole diameter and depth
- Custom designs available
ADVANTAGES
- Maintenance Free
- Safe when used as directed
- Long Life Durable Ergonometic
- No Electricity so no shock hazard
- Low Air consumption
VIDEOS
SPECIFICATIONS
DEEP HOLE CLEANING SYSTEM – comes complete with Cleaning Gun, Aluminum cast
Hole adaptor, nozzle, collection bag c/w hose clamp and plastic hose connection
| Model | Description |
| 48104-16-15 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 50 mm. |
| 48104-20-15 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 50 mm. |
| 48104-25-15 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 50 mm. |
| 48104-16-75 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 90 mm. |
| 48104-20-75 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 90 mm. |
| 48104-25-75 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 90 mm. |
| 48104-16-150 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 165 mm. |
| 48104-20-150 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 165 mm. |
| 48104-25-150 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 165 mm. |
| 48104-16-230 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 245 mm. |
| 48104-20-230 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 245 mm. |
| 48104-25-230 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 245 mm. |
| 48104-16-300 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 315 mm. |
| 48104-20-300 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 315 mm. |
| 48104-25-300 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 315 mm. |
| 48104-16-375 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 390 mm. |
| 48104-20-375 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 390 mm. |
| 48104-25-375 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 390 mm. |
| 48104-16-450 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 465 mm. |
| 48104-20-450 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 465 mm. |
| 48104-25-450 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 465 mm. |
| 48104-16-510 | Blind Hole Cleaning System for Max. Hole Dia. of 16 mm and hole depth of 525 mm. |
| 48104-20-510 | Blind Hole Cleaning System for Max. Hole Dia. of 20 mm and hole depth of 525 mm. |
| 48104-25-510 | Blind Hole Cleaning System for Max. Hole Dia. of 25 mm and hole depth of 525 mm. |
| COMPLETE KIT | |
| 48105 | Blind Hole Cleaning System Kit with All Hole Adaptors and all nozzles. Plus water removal filter c/w auto drain |
| 48102-16 | Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 16 mm – no nozzles |
| 48102-20 | Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 20 mm – no nozzles |
| 48102-25 | Blind Hole Gun c/w Adaptor for Maximum Hole Diameter of 25 mm – no nozzles |
| 48100-16 | Adaptor Only for Maximum Hole Diameter of 16 mm |
| 48100-20 | Adaptor Only for Maximum Hole Diameter of 20 mm |
| 48100-25 | Adaptor Only for Maximum Hole Diameter of 25 mm |
| NOTE: all standard nozzles below are for minimum inside diameter holes of 7mm. special small nozzles for smaller holes and non-standard cavities are available on request. | |
| 48103-150 | Nozzle Length – 150 mm for hole depth up to 165 mm (20 SCFM @80 PSIG) |
| 48103-230 | Nozzle Length – 230 mm for hole depth up to 245 mm (20 SCFM @80 PSIG) |
| 48103-300 | Nozzle Length – 300 mm for hole depth up to 315 mm (20 SCFM @80 PSIG) |
| 48103-375 | Nozzle Length – 375 mm for hole depth up to 390 mm (20 SCFM @80 PSIG) |
| 48103-450 | Nozzle Length – 450 mm for hole depth up to 465 mm (20 SCFM @80 PSIG) |
| 48103-510 | Nozzle Length – 510 mm for hole depth up to 525 mm (20 SCFM @80 PSIG) |
| 48104-0 | Bag with plastic hose and Stainless Steel hose clamp |
