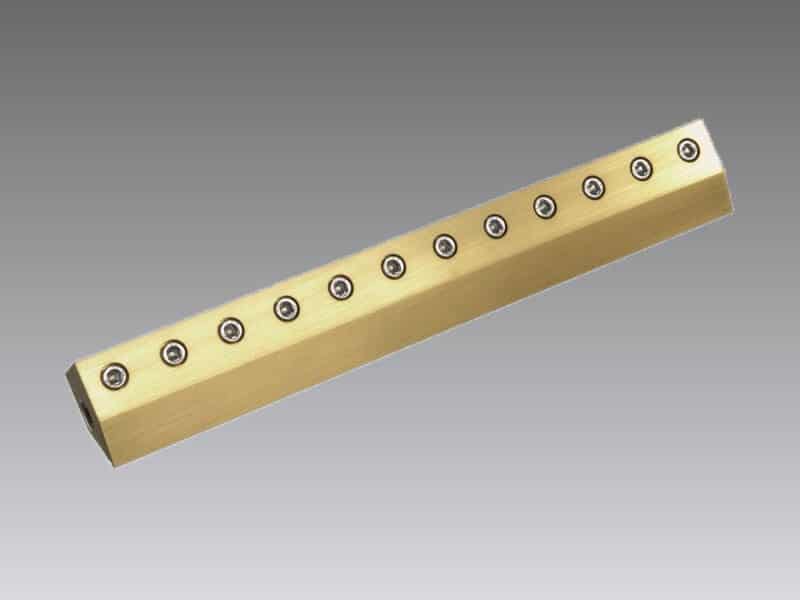

X-Stream™ Air Blade™ Air Knife
PRODUCT OVERVIEW
The X-Stream Air Blade™ Air Knife from Nex Flow™ is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.
It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times.
Our air knife systems payback on compressed air savings can be seen in some applications.
APPLICATIONS
- Part drying after wash
- Sheet cleaning in strip mills
- Conveyor cleaning
- Part or component cooling
- Web drying or cleaning
- Environmental separation
- Pre-paint blowoff
- Bag opening/filling operations
- Scrap removal on converting operations
ADVANTAGES
- Quiet – 69 dBA for most applications
- Made of a coated Aluminum body and hard coated cap.
- 40:1 air amplification
- Uniform airflow across entire length
- Variable force and flow
- No moving parts – maintenance free
- Easy mounting
- Compact, rugged, easy to install
- Stainless steel screws in all models
VIDEOS
PERFORMANCE
| 10002X – 2″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.01 | 0.08 | 0.20 | 0.35 | 0.54 | 0.77 | 1.04 | 1.35 | 1.70 | 2.09 | 2.53 | 3.00 |
| Flow (SCFM) | 0.7 | 1.6 | 4.4 | 7.9 | 12 | 17 | 22 | 28 | 34 | 41 | 49 | 57 |
| Velocity (ft/s) | 137 | 172 | 207 | 240 | 273 | 304 | 335 | 365 | 394 | 422 | 449 | 475 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 4.54 | 36.3 | 90.7 | 159 | 245 | 349 | 472 | 612 | 771 | 948 | 1148 | 1361 |
| Flow (SLPM) | 19.8 | 45.3 | 125 | 224 | 340 | 481 | 623 | 793 | 963 | 1161 | 1388 | 1614 |
| Velocity (m/s) | 41.8 | 52.4 | 63.1 | 73.2 | 83.2 | 92.7 | 102 | 111 | 120 | 129 | 137 | 145 |
| 10003X – 3″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.01 | 0.09 | 0.21 | 0.38 | 0.58 | 0.83 | 1.11 | 1.44 | 1.80 | 2.21 | 2.63 | 3.14 |
| Flow (SCFM) | 0.9 | 2.6 | 5.7 | 9.3 | 14 | 19 | 24 | 31 | 37 | 44 | 52 | 60 |
| Velocity (ft/s) | 45.7 | 71.2 | 95.9 | 120 | 142 | 164 | 185 | 206 | 225 | 243 | 261 | 277 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 4.54 | 40.8 | 95.3 | 172 | 263 | 376 | 503 | 653 | 816 | 1002 | 1193 | 1424 |
| Flow (SLPM) | 25.5 | 73.6 | 161 | 263 | 396 | 538 | 680 | 878 | 1048 | 1246 | 1472 | 1699 |
| Velocity (m/s) | 13.9 | 21.7 | 29.2 | 36.6 | 43.3 | 50.0 | 56.4 | 62.8 | 68.6 | 74.1 | 79.6 | 84.4 |
| 10006X – 6″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.02 | 0.11 | 0.28 | 0.49 | 0.73 | 1.02 | 1.35 | 1.72 | 2.12 | 2.57 | 3.05 | 3.58 |
| Flow (SCFM) | 2.4 | 5.6 | 9.4 | 14 | 19 | 24 | 30 | 37 | 45 | 53 | 61 | 70 |
| Velocity (ft/s) | 8.90 | 24.7 | 39.7 | 53.7 | 66.9 | 79.1 | 90.4 | 101 | 110 | 119 | 127 | 134 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 9.07 | 49.9 | 127 | 222 | 331 | 463 | 612 | 780 | 962 | 1166 | 1383 | 1624 |
| Flow (SLPM) | 68.0 | 159 | 266 | 396 | 538 | 680 | 850 | 1048 | 1274 | 1501 | 1727 | 1982 |
| Velocity (m/s) | 2.7 | 7.5 | 12.1 | 16.4 | 20.4 | 24.1 | 27.6 | 30.8 | 33.5 | 36.3 | 38.7 | 40.8 |
| 10009X – 9″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.02 | 0.15 | 0.36 | 0.61 | 0.90 | 1.23 | 1.59 | 2.00 | 2.45 | 2.94 | 3.47 | 4.04 |
| Flow (SCFM) | 4.7 | 8.6 | 13 | 18 | 24 | 30 | 37 | 44 | 52 | 61 | 70 | 80 |
| Velocity (ft/s) | 8.79 | 21.4 | 33.1 | 43.9 | 53.8 | 62.8 | 70.9 | 78.1 | 84.4 | 89.8 | 94.3 | 97.9 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 9.07 | 68.0 | 163 | 277 | 408 | 558 | 721 | 907 | 1111 | 1334 | 1574 | 1833 |
| Flow (SLPM) | 133.1 | 244 | 368 | 510 | 680 | 850 | 1048 | 1246 | 1472 | 1727 | 1982 | 2265 |
| Velocity (m/s) | 2.7 | 6.5 | 10.1 | 13.4 | 16.4 | 19.1 | 21.6 | 23.8 | 25.7 | 27.4 | 28.7 | 29.8 |
| 10012X – 12″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.01 | 0.20 | 0.46 | 0.75 | 1.08 | 1.45 | 1.86 | 2.31 | 2.80 | 3.33 | 3.90 | 4.51 |
| Flow (SCFM) | 7.0 | 11 | 17 | 22 | 29 | 36 | 43 | 51 | 60 | 70 | 80 | 90 |
| Velocity (ft/s) | 11.0 | 22.0 | 32.1 | 41.3 | 49.6 | 57.0 | 63.4 | 69.0 | 73.7 | 77.5 | 80.3 | 82.4 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 4.54 | 90.7 | 209 | 340 | 490 | 658 | 844 | 1048 | 1270 | 1510 | 1769 | 2046 |
| Flow (SLPM) | 198 | 311 | 481 | 623 | 821 | 1019 | 1218 | 1444 | 1699 | 1982 | 2265 | 2549 |
| Velocity (m/s) | 3.4 | 6.7 | 9.8 | 12.6 | 15.1 | 17.4 | 19.3 | 21.0 | 22.5 | 23.6 | 24.5 | 25.1 |
| 10015X – 15″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.02 | 0.28 | 0.57 | 0.90 | 1.27 | 1.69 | 2.14 | 2.63 | 3.12 | 3.74 | 4.35 | 5.00 |
| Flow (SCFM) | 9.3 | 14 | 20 | 27 | 34 | 41 | 50 | 59 | 69 | 78 | 89 | 100 |
| Velocity (ft/s) | 13.0 | 23.1 | 32.2 | 40.4 | 47.7 | 54.1 | 59.7 | 64.3 | 68.0 | 70.8 | 72.7 | 73.8 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 9.07 | 127 | 259 | 408 | 576 | 767 | 971 | 1193 | 1415 | 1696 | 1973 | 2268 |
| Flow (SLPM) | 263 | 396 | 566 | 765 | 963 | 1161 | 1416 | 1671 | 1954 | 2209 | 2520 | 2832 |
| Velocity (m/s) | 4.0 | 7.0 | 9.8 | 12.3 | 14.5 | 16.5 | 18.2 | 19.6 | 20.7 | 21.6 | 22.2 | 22.5 |
| 10018X – 18″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.07 | 0.36 | 0.67 | 1.07 | 1.49 | 1.94 | 2.44 | 2.97 | 3.55 | 4.16 | 4.82 | 5.50 |
| Flow (SCFM) | 11 | 17 | 24 | 31 | 39 | 47 | 56 | 66 | 76 | 87 | 98 | 110 |
| Velocity (ft/s) | 14.7 | 24.1 | 32.6 | 40.2 | 46.8 | 52.6 | 57.5 | 61.4 | 64.5 | 66.7 | 68.0 | 68.3 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 31.8 | 163 | 304 | 485 | 676 | 880 | 1107 | 1347 | 1610 | 1887 | 2186 | 2495 |
| Flow (SLPM) | 311 | 481 | 680 | 878 | 1104 | 1331 | 1586 | 1869 | 2152 | 2464 | 2775 | 3115 |
| Velocity (m/s) | 4.5 | 7.3 | 9.9 | 12.3 | 14.3 | 16.0 | 17.5 | 18.7 | 19.7 | 20.3 | 20.7 | 20.8 |
| 10024X – 24″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.21 | 0.59 | 1.01 | 1.46 | 1.96 | 2.50 | 3.08 | 3.70 | 4.36 | 5.06 | 5.80 | 6.58 |
| Flow (SCFM) | 16 | 23 | 31 | 40 | 49 | 58 | 69 | 80 | 91 | 103 | 116 | 129 |
| Velocity (ft/s) | 17.2 | 25.7 | 33.4 | 40.2 | 46.0 | 51.0 | 55.1 | 58.2 | 60.5 | 61.9 | 62.3 | 61.9 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 95.25 | 267.6 | 458 | 662 | 889 | 1134 | 1397 | 1678 | 1978 | 2295 | 2631 | 2985 |
| Flow (SLPM) | 453 | 651 | 878 | 1133 | 1388 | 1642 | 1954 | 2265 | 2577 | 2917 | 3285 | 3653 |
| Velocity (m/s) | 5.2 | 7.8 | 10.2 | 12.3 | 14.0 | 15.5 | 16.8 | 17.7 | 18.4 | 18.9 | 19.0 | 18.9 |
| 10030X – 30″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.41 | 0.87 | 1.38 | 1.92 | 2.50 | 3.13 | 3.78 | 4.49 | 5.24 | 6.02 | 6.84 | 7.70 |
| Flow (SCFM) | 21 | 29 | 38 | 48 | 59 | 70 | 81 | 94 | 107 | 120 | 134 | 149 |
| Velocity (ft/s) | 18.8 | 26.9 | 34.1 | 40.4 | 45.7 | 50.2 | 53.8 | 56.5 | 58.3 | 59.1 | 59.1 | 58.2 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 186 | 395 | 626 | 871 | 1134 | 1420 | 1715 | 2037 | 2377 | 2731 | 3103 | 3493 |
| Flow (SLPM) | 595 | 821 | 1076 | 1359 | 1671 | 1982 | 2294 | 2662 | 3030 | 3398 | 3794 | 4219 |
| Velocity (m/s) | 5.7 | 8.2 | 10.4 | 12.3 | 13.9 | 15.3 | 16.4 | 17.2 | 17.8 | 18.0 | 18.0 | 17.7 |
| 10036X – 36″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 0.68 | 1.22 | 1.81 | 2.44 | 3.11 | 3.81 | 4.56 | 5.35 | 6.18 | 7.04 | 7.95 | 8.90 |
| Flow (SCFM) | 25 | 35 | 45 | 57 | 68 | 81 | 94 | 108 | 122 | 137 | 153 | 168 |
| Velocity (ft/s) | 20.0 | 27.8 | 34.6 | 40.6 | 45.6 | 49.8 | 53.0 | 55.4 | 56.8 | 57.4 | 57.1 | 55.8 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 308 | 553 | 821 | 1107 | 1411 | 1728 | 2068 | 2427 | 2803 | 3193 | 3606 | 4037 |
| Flow (SLPM) | 708 | 991 | 1274 | 1614 | 1926 | 2294 | 2662 | 3058 | 3455 | 3879 | 4332 | 4757 |
| Velocity (m/s) | 6.1 | 8.5 | 10.5 | 12.4 | 13.9 | 15.2 | 16.2 | 16.9 | 17.3 | 17.5 | 17.4 | 17.0 |
| 10042X – 42″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 1.01 | 1.65 | 2.32 | 3.03 | 3.78 | 4.67 | 5.40 | 6.27 | 7.18 | 8.13 | 9.12 | 10.15 |
| Flow (SCFM) | 29 | 40 | 52 | 65 | 78 | 92 | 107 | 122 | 137 | 153 | 170 | 188 |
| Velocity (ft/s) | 20.9 | 28.4 | 35.0 | 40.7 | 45.6 | 49.5 | 52.5 | 54.6 | 55.9 | 56.2 | 55.6 | 54.1 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 458 | 748 | 1052 | 1374 | 1715 | 2118 | 2449 | 2844 | 3257 | 3688 | 4137 | 4604 |
| Flow (SLPM) | 821 | 1133 | 1472 | 1841 | 2209 | 2605 | 3030 | 3455 | 3879 | 4332 | 4814 | 5324 |
| Velocity (m/s) | 6.4 | 8.7 | 10.7 | 12.4 | 13.9 | 15.1 | 16.0 | 16.6 | 17.0 | 17.1 | 16.9 | 16.5 |
| 10048X – 48″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 1.41 | 2.13 | 2.88 | 3.68 | 4.51 | 5.39 | 6.30 | 7.26 | 8.25 | 9.29 | 10.36 | 11.48 |
| Flow (SCFM) | 33 | 46 | 59 | 73 | 88 | 103 | 119 | 135 | 152 | 170 | 188 | 207 |
| Velocity (ft/s) | 21.6 | 28.9 | 35.4 | 40.9 | 45.6 | 49.3 | 52.2 | 54.1 | 55.2 | 55.3 | 54.6 | 52.9 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 640 | 966 | 1306 | 1669 | 2046 | 2445 | 2858 | 3293 | 3742 | 4214 | 4699 | 5207 |
| Flow (SLPM) | 934 | 1303 | 1671 | 2067 | 2492 | 2917 | 3370 | 3823 | 4304 | 4814 | 5324 | 5862 |
| Velocity (m/s) | 6.6 | 8.8 | 10.8 | 12.5 | 13.9 | 15.0 | 15.9 | 16.5 | 16.8 | 16.9 | 16.6 | 16.1 |
| 10054X – 54″ Aluminum X-Stream Air Knife | ||||||||||||
| Inlet Pressure (PSIG) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 120 |
| Force (lbs) | 1.88 | 2.67 | 3.51 | 4.40 | 5.31 | 6.27 | 7.27 | 8.31 | 9.39 | 10.51 | 11.67 | 12.87 |
| Flow (SCFM) | 37 | 51 | 66 | 81 | 97 | 114 | 131 | 149 | 167 | 186 | 206 | 226 |
| Velocity (ft/s) | 22.1 | 29.3 | 35.6 | 41.0 | 45.6 | 49.2 | 51.9 | 53.7 | 54.6 | 54.6 | 53.8 | 52.0 |
| Inlet Pressure (BAR) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.6 | 6.2 | 6.9 | 7.7 | 8.4 |
| Force (grams) | 853 | 1211 | 1592 | 1996 | 2409 | 2844 | 3298 | 3769 | 4259 | 4767 | 5293 | 5838 |
| Flow (SLPM) | 1048 | 1444 | 1869 | 2294 | 2747 | 3228 | 3710 | 4219 | 4729 | 5267 | 5833 | 6400 |
| Velocity (m/s) | 6.7 | 8.9 | 10.9 | 12.5 | 13.9 | 15.0 | 15.8 | 16.4 | 16.6 | 16.6 | 16.4 | 15.8 |

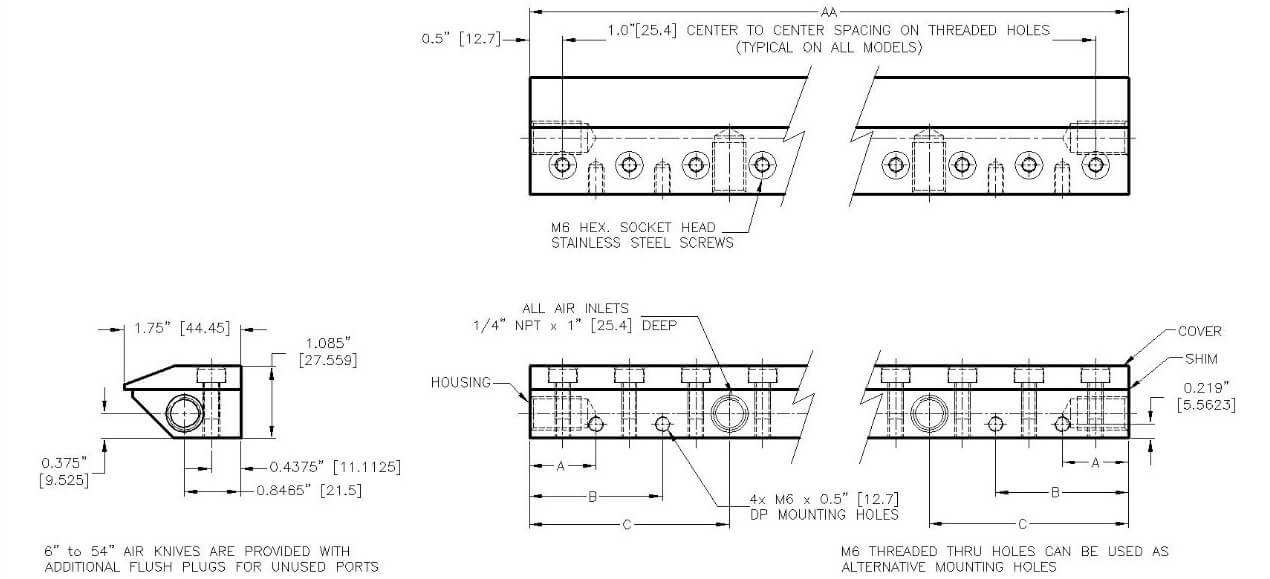

DIMENSIONS
The Air-Blade™ – X-Stream™ is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)
Special lengths of our X-Stream™ Air-Blade™ are available on special order including lengths combining several units.
PART NO. | AA
| A
| B
| C Inches (mm) | No. of Rear Inlets (Side Inlets) |
10002X | 2”(50.8) | N/A | N/A | 1”(25.4) | 1(0) |
10003X | 3”(76.2) | .641”(16.3) | N/A | 1.5”(38.1) | 1(0) |
10006X | 6”(152) | 1”(25.4) | 2”(50.8) | 3”(76.2) | 1(2) |
10009X | 9”(228.6) | 1”(25.4) | 2”(50.8) | 3”(76.2) | 2(2) |
10012X | 12”(304.8) | 1”(25.4) | 2”(50.8) | 3”(76.2) | 2(2) |
10015X | 15”(381) | 1”(25.4) | 2”(50.8) | 4”(101.6) | 2(2) |
10018X | 18”(457.2) | 1”(25.4) | 2”(50.8) | 5”(127.0) | 2(2) |
10024X | 24”(609.6) | 1”(25.4) | 2”(50.8) | 6”(152.4) | 2(2) |
10030X | 30”(762) | 1”(25.4) | 2”(50.8) | 6”(152.4) | 2(2) |
10036X | 36”(914.4) | 1”(25.4) | 2”(50.8) | 6”(152.4) | 2(2) |
10042X | 42”(1066.8) | 1”(25.4) | 2”(50.8) | 6”(152.4) | 2(2) |
10048X | 48”(1219.2) | 1”(25.4) | 2”(50.8) | 9”(228.6) | 3(2) |
10054X | 54”(1371.6) | 1”(25.4) | 2”(50.8) | 9”(228.6) | 3(2) |
OPTIONS

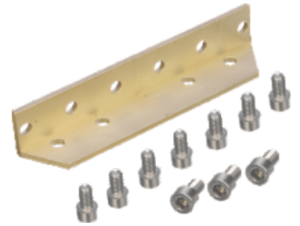

OPTIONAL SILENT X-STREAM AIR BLADE AIR KNIFE COUPLING KIT
This one piece kit c/w 10 stainless steel screws connects any two Silent X-Stream Air Blade Air Knife of 6” or larger together to make a longer blowoff system to cover greater distances. The units come in three models. Model 10900X gold anodized aluminum for the gold anodized aluminum Silent X-Stream Air Blade Air Knives, Model 10900XHA for the Hard Anodized units, and Model 10900XS stainless for stainless steel models.
- + Overview
PRODUCT OVERVIEW
The X-Stream Air Blade™ Air Knife from Nex Flow™ is easy to install and maintain. It can reduce both compressed air consumption and noise levels. used to blow off liquid or debris from products as they travel on conveyors.
It produces a “laminar” flow of air using the Coanda effect. This draws a large volume of air from the surrounding area along with the small amount of compressed air from the Air-Blade. It also produces an output flow up to 40 times.
Our air knife systems payback on compressed air savings can be seen in some applications.
- + Features
APPLICATIONS
- Part drying after wash
- Sheet cleaning in strip mills
- Conveyor cleaning
- Part or component cooling
- Web drying or cleaning
- Environmental separation
- Pre-paint blowoff
- Bag opening/filling operations
- Scrap removal on converting operations
ADVANTAGES
- Quiet – 69 dBA for most applications
- Made of a coated Aluminum body and hard coated cap.
- 40:1 air amplification
- Uniform airflow across entire length
- Variable force and flow
- No moving parts – maintenance free
- Easy mounting
- Compact, rugged, easy to install
- Stainless steel screws in all models
- + Videos
VIDEOS
- + Performance
PERFORMANCE
10002X – 2″ Aluminum X-Stream Air Knife
Inlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.01 0.08 0.20 0.35 0.54 0.77 1.04 1.35 1.70 2.09 2.53 3.00 Flow
(SCFM)0.7 1.6 4.4 7.9 12 17 22 28 34 41 49 57 Velocity (ft/s) 137 172 207 240 273 304 335 365 394 422 449 475 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)4.54 36.3 90.7 159 245 349 472 612 771 948 1148 1361 Flow (SLPM) 19.8 45.3 125 224 340 481 623 793 963 1161 1388 1614 Velocity
(m/s)41.8 52.4 63.1 73.2 83.2 92.7 102 111 120 129 137 145 10003X
– 3″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force
(lbs)0.01 0.09 0.21 0.38 0.58 0.83 1.11 1.44 1.80 2.21 2.63 3.14 Flow (SCFM) 0.9 2.6 5.7 9.3 14 19 24 31 37 44 52 60 Velocity
(ft/s)45.7 71.2 95.9 120 142 164 185 206 225 243 261 277 Inlet
Pressure (BAR)0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force (grams) 4.54 40.8 95.3 172 263 376 503 653 816 1002 1193 1424 Flow
(SLPM)25.5 73.6 161 263 396 538 680 878 1048 1246 1472 1699 Velocity (m/s) 13.9 21.7 29.2 36.6 43.3 50.0 56.4 62.8 68.6 74.1 79.6 84.4 10006X
– 6″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.02 0.11 0.28 0.49 0.73 1.02 1.35 1.72 2.12 2.57 3.05 3.58 Flow
(SCFM)2.4 5.6 9.4 14 19 24 30 37 45 53 61 70 Velocity (ft/s) 8.90 24.7 39.7 53.7 66.9 79.1 90.4 101 110 119 127 134 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)9.07 49.9 127 222 331 463 612 780 962 1166 1383 1624 Flow (SLPM) 68.0 159 266 396 538 680 850 1048 1274 1501 1727 1982 Velocity
(m/s)2.7 7.5 12.1 16.4 20.4 24.1 27.6 30.8 33.5 36.3 38.7 40.8 10009X
– 9″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.02 0.15 0.36 0.61 0.90 1.23 1.59 2.00 2.45 2.94 3.47 4.04 Flow
(SCFM)4.7 8.6 13 18 24 30 37 44 52 61 70 80 Velocity (ft/s) 8.79 21.4 33.1 43.9 53.8 62.8 70.9 78.1 84.4 89.8 94.3 97.9 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)9.07 68.0 163 277 408 558 721 907 1111 1334 1574 1833 Flow (SLPM) 133.1 244 368 510 680 850 1048 1246 1472 1727 1982 2265 Velocity
(m/s)2.7 6.5 10.1 13.4 16.4 19.1 21.6 23.8 25.7 27.4 28.7 29.8 10012X
– 12″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.01 0.20 0.46 0.75 1.08 1.45 1.86 2.31 2.80 3.33 3.90 4.51 Flow
(SCFM)7.0 11 17 22 29 36 43 51 60 70 80 90 Velocity (ft/s) 11.0 22.0 32.1 41.3 49.6 57.0 63.4 69.0 73.7 77.5 80.3 82.4 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)4.54 90.7 209 340 490 658 844 1048 1270 1510 1769 2046 Flow (SLPM) 198 311 481 623 821 1019 1218 1444 1699 1982 2265 2549 Velocity
(m/s)3.4 6.7 9.8 12.6 15.1 17.4 19.3 21.0 22.5 23.6 24.5 25.1 10015X
– 15″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.02 0.28 0.57 0.90 1.27 1.69 2.14 2.63 3.12 3.74 4.35 5.00 Flow
(SCFM)9.3 14 20 27 34 41 50 59 69 78 89 100 Velocity (ft/s) 13.0 23.1 32.2 40.4 47.7 54.1 59.7 64.3 68.0 70.8 72.7 73.8 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)9.07 127 259 408 576 767 971 1193 1415 1696 1973 2268 Flow (SLPM) 263 396 566 765 963 1161 1416 1671 1954 2209 2520 2832 Velocity
(m/s)4.0 7.0 9.8 12.3 14.5 16.5 18.2 19.6 20.7 21.6 22.2 22.5 10018X
– 18″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.07 0.36 0.67 1.07 1.49 1.94 2.44 2.97 3.55 4.16 4.82 5.50 Flow
(SCFM)11 17 24 31 39 47 56 66 76 87 98 110 Velocity (ft/s) 14.7 24.1 32.6 40.2 46.8 52.6 57.5 61.4 64.5 66.7 68.0 68.3 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)31.8 163 304 485 676 880 1107 1347 1610 1887 2186 2495 Flow (SLPM) 311 481 680 878 1104 1331 1586 1869 2152 2464 2775 3115 Velocity
(m/s)4.5 7.3 9.9 12.3 14.3 16.0 17.5 18.7 19.7 20.3 20.7 20.8 10024X
– 24″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.21 0.59 1.01 1.46 1.96 2.50 3.08 3.70 4.36 5.06 5.80 6.58 Flow
(SCFM)16 23 31 40 49 58 69 80 91 103 116 129 Velocity (ft/s) 17.2 25.7 33.4 40.2 46.0 51.0 55.1 58.2 60.5 61.9 62.3 61.9 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)95.25 267.6 458 662 889 1134 1397 1678 1978 2295 2631 2985 Flow (SLPM) 453 651 878 1133 1388 1642 1954 2265 2577 2917 3285 3653 Velocity
(m/s)5.2 7.8 10.2 12.3 14.0 15.5 16.8 17.7 18.4 18.9 19.0 18.9 10030X
– 30″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.41 0.87 1.38 1.92 2.50 3.13 3.78 4.49 5.24 6.02 6.84 7.70 Flow
(SCFM)21 29 38 48 59 70 81 94 107 120 134 149 Velocity (ft/s) 18.8 26.9 34.1 40.4 45.7 50.2 53.8 56.5 58.3 59.1 59.1 58.2 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)186 395 626 871 1134 1420 1715 2037 2377 2731 3103 3493 Flow (SLPM) 595 821 1076 1359 1671 1982 2294 2662 3030 3398 3794 4219 Velocity
(m/s)5.7 8.2 10.4 12.3 13.9 15.3 16.4 17.2 17.8 18.0 18.0 17.7 10036X
– 36″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 0.68 1.22 1.81 2.44 3.11 3.81 4.56 5.35 6.18 7.04 7.95 8.90 Flow
(SCFM)25 35 45 57 68 81 94 108 122 137 153 168 Velocity (ft/s) 20.0 27.8 34.6 40.6 45.6 49.8 53.0 55.4 56.8 57.4 57.1 55.8 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)308 553 821 1107 1411 1728 2068 2427 2803 3193 3606 4037 Flow (SLPM) 708 991 1274 1614 1926 2294 2662 3058 3455 3879 4332 4757 Velocity
(m/s)6.1 8.5 10.5 12.4 13.9 15.2 16.2 16.9 17.3 17.5 17.4 17.0 10042X
– 42″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 1.01 1.65 2.32 3.03 3.78 4.67 5.40 6.27 7.18 8.13 9.12 10.15 Flow
(SCFM)29 40 52 65 78 92 107 122 137 153 170 188 Velocity (ft/s) 20.9 28.4 35.0 40.7 45.6 49.5 52.5 54.6 55.9 56.2 55.6 54.1 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)458 748 1052 1374 1715 2118 2449 2844 3257 3688 4137 4604 Flow (SLPM) 821 1133 1472 1841 2209 2605 3030 3455 3879 4332 4814 5324 Velocity
(m/s)6.4 8.7 10.7 12.4 13.9 15.1 16.0 16.6 17.0 17.1 16.9 16.5 10048X
– 48″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 1.41 2.13 2.88 3.68 4.51 5.39 6.30 7.26 8.25 9.29 10.36 11.48 Flow
(SCFM)33 46 59 73 88 103 119 135 152 170 188 207 Velocity (ft/s) 21.6 28.9 35.4 40.9 45.6 49.3 52.2 54.1 55.2 55.3 54.6 52.9 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)640 966 1306 1669 2046 2445 2858 3293 3742 4214 4699 5207 Flow (SLPM) 934 1303 1671 2067 2492 2917 3370 3823 4304 4814 5324 5862 Velocity
(m/s)6.6 8.8 10.8 12.5 13.9 15.0 15.9 16.5 16.8 16.9 16.6 16.1 10054X
– 54″ Aluminum X-Stream Air KnifeInlet
Pressure (PSIG)10 20 30 40 50 60 70 80 90 100 110 120 Force (lbs) 1.88 2.67 3.51 4.40 5.31 6.27 7.27 8.31 9.39 10.51 11.67 12.87 Flow
(SCFM)37 51 66 81 97 114 131 149 167 186 206 226 Velocity (ft/s) 22.1 29.3 35.6 41.0 45.6 49.2 51.9 53.7 54.6 54.6 53.8 52.0 Inlet Pressure (BAR) 0.7 1.4 2.1 2.8 3.5 4.2 4.9 5.6 6.2 6.9 7.7 8.4 Force
(grams)853 1211 1592 1996 2409 2844 3298 3769 4259 4767 5293 5838 Flow (SLPM) 1048 1444 1869 2294 2747 3228 3710 4219 4729 5267 5833 6400 Velocity
(m/s)6.7 8.9 10.9 12.5 13.9 15.0 15.8 16.4 16.6 16.6 16.4 15.8 - + Dimensions
DIMENSIONS
The Air-Blade™ – X-Stream™ is available in thirteen (13) standard lengths: 2″ (51mm), 3″ (76mm), 6″ (150mm), 9″ (229mm), 12″ (300mm), 15” (381mm), 18″ (457mm), 24″ (609.5mm), 30″ (761mm), 36″ (914mm), 42” (1067 mm), 48” (1219 mm), 54” (1372 mm)
Special lengths of our X-Stream™ Air-Blade™ are available on special order including lengths combining several units.
PART NO.AA
Inches
(mm)A
Inches
(mm)B
Inches
(mm)C
Inches
(mm)No. of
Rear Inlets
(Side Inlets)10002X2”(50.8)N/AN/A1”(25.4)1(0)10003X3”(76.2).641”(16.3)N/A1.5”(38.1)1(0)10006X6”(152)1”(25.4)2”(50.8)3”(76.2)1(2)10009X9”(228.6)1”(25.4)2”(50.8)3”(76.2)2(2)10012X12”(304.8)1”(25.4)2”(50.8)3”(76.2)2(2)10015X15”(381)1”(25.4)2”(50.8)4”(101.6)2(2)10018X18”(457.2)1”(25.4)2”(50.8)5”(127.0)2(2)10024X24”(609.6)1”(25.4)2”(50.8)6”(152.4)2(2)10030X30”(762)1”(25.4)2”(50.8)6”(152.4)2(2)10036X36”(914.4)1”(25.4)2”(50.8)6”(152.4)2(2)10042X42”(1066.8)1”(25.4)2”(50.8)6”(152.4)2(2)10048X48”(1219.2)1”(25.4)2”(50.8)9”(228.6)3(2)10054X54”(1371.6)1”(25.4)2”(50.8)9”(228.6)3(2)- + Options

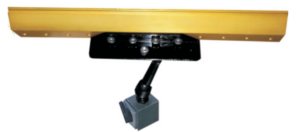

OPTIONS
OPTIONAL SILENT X-STREAM AIR BLADE AIR KNIFE COUPLING KIT
This one piece kit c/w 10 stainless steel screws connects any two Silent X-Stream Air Blade Air Knife of 6” or larger together to make a longer blowoff system to cover greater distances. The units come in three models. Model 10900X gold anodized aluminum for the gold anodized aluminum Silent X-Stream Air Blade Air Knives, Model 10900XHA for the Hard Anodized units, and Model 10900XS stainless for stainless steel models.
