Standard Aluminium / Stainless Steel Ring Vac™
PRODUCT OVERVIEW
Available in standard and threaded versions for regular and high temperature applications on both 303/304 Stainless Steel or 316L Stainless Steel.
Pneumatic Conveyors – Ring-Vac™ Pneumatic Conveying System has virtually no moving parts, conveys material at high rates and over long distances. It utilizes compressed air for a powerful, efficient venturi action along its length in a compact design for high capacity conveying over large distances.
APPLICATIONS
- Hopper loading
- Fiber tensioning
- Material conveying
- Waste/trim removal
- Chip removal
- Part transfer
- Filling operations
ADVANTAGES
- Compact
- Quiet
- No moving parts
- Fits standard hose or tube
- Aluminum or stainless steel
- High throughput capability
VIDEOS

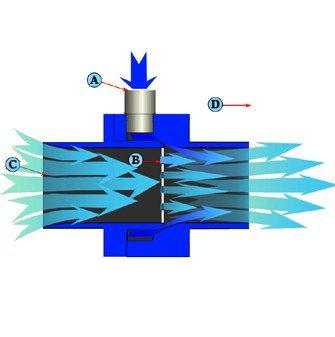

Ring-Vac™ compressed air conveying system – Compressed air enters at point (A) into a annular plenum chamber and injected into the throat of the unit though directed nozzles. These jets of compressed air create a vacuum at the inlet (C) which draws in material and accelerates it through the unit and out at (D) conveying the material over a great vertical or horizontal distance.
Specifications
Air Conveyors – Ring-Vac™ Pneumatic Conveying Systems are available in coated Aluminium, stainless steel and in high temperature stainless steel for high temperature applications. Note: All our stainless steel high temperature Ring-Vac units are rated to 1200ºF (649ºC)
Special materials can be utilized for unique applications. If greater conveying force is required the conveying “generator” can be machined for higher capacities.
| Outside Diameter (Dimension “A” Hose Diameter) |
||
|
3/4″
|
30000
|
Aluminium
|
|
1″
|
30001
|
Aluminium
|
|
1-1/4″
|
30002
|
Aluminium
|
|
1-1/2″
|
30003
|
Aluminium
|
|
2″
|
30004
|
Aluminium
|
|
2 1/2″
|
30005
|
Aluminium
|
|
3″
|
30006
|
Aluminium
|
|
3/4″
|
30000S
|
Stainless Steel
|
|
1″
|
30001S
|
Stainless Steel
|
|
1″
|
30001HTS
|
High Temp Stainless Steel
|
|
1-1/4″
|
30002S
|
Stainless Steel
|
|
1-1/4″
|
30002SHTS
|
High Temperature Stainless Steel
|
|
1-1/2″
|
30003S
|
Stainless Steel
|
|
1-1/2″
|
30003SHTS
|
High Temperature Stainless Steel
|
|
2″
|
30004S
|
Stainless Steel
|
|
2 1/2″
|
30005S
|
Stainless Steel
|
|
2″
|
30004SHTS
|
High Temperature Stainless Steel
|
|
3″
|
30006S
|
Stainless Steel
|
|
1″ NPT
|
30001T (Threaded)
|
Aluminium
|
|
1-1/4″ NPT
|
30002T (Threaded)
|
Aluminium
|
|
1-1/2″ NPT
|
30003T (Threaded)
|
Aluminium
|
|
2″ NPT
|
30004T (Threaded)
|
Aluminium
|
|
1″ NPT
|
30001TS (Threaded)
|
Stainless Steel
|
|
1″ NPT
|
30001THTS
|
High Temperature Stainless Steel
|
|
1-1/4″ NPT
|
30002TS (Threaded)
|
Stainless Steel
|
|
1-1/4″ NPT
|
30002THTS
|
High Temperature Stainless Steel
|
|
1-1/2″ NPT
|
30003TS (Threaded)
|
Stainless Steel
|
|
1-1/2″ NPT
|
30003THTS (Threaded)
|
High Temperature Stainless Steel
|
|
2″ NPT
|
30004TS (Threaded)
|
Stainless Steel
|
|
2″ NPT
|
30004THTS
|
High Temperature Stainless Steel
|
|
3″
|
30006TS (Threaded)
|
Stainless Steel
|
|
3/4″
|
30000HTS
|
High Temperature Stainless Steel
|
|
2-1/2″
|
30005HTS
|
High Temperature Stainless Steel
|
|
3″
|
30006HTS
|
High Temperature Stainless Steel
|
|
3″
|
30006THTS
|
High Temperature Stainless Steel
|
|
3/4″
|
30000S-316L
|
316L Stainless Steel
|
|
1″
|
30001S-316L
|
316L Stainless Steel
|
|
1 1/4″
|
30002S-316L
|
316L Stainless Steel
|
|
1 1/2″
|
30003S-316L
|
316L Stainless Steel
|
|
2″
|
30004S-316L
|
316L Stainless Steel
|
|
3/4″
|
30000HTS-316L
|
316L High Temperature Stainless Steel
|
|
1″
|
30001HTS-316L
|
316L High Temperature Stainless Steel
|
|
1 1/4″
|
30002HTS-316L
|
316L High Temperature Stainless Steel
|
|
1 1/2″
|
30003HTS-316L
|
316L High Temperature Stainless Steel
|
|
2″
|
30004HTS-316L
|
316L High Temperature Stainless Steel
|
NPT Adaptors Available Upon Request
** STAINLESS STEEL IS 303/304 STAINLESS UNLESS OTHERWIDE INDICATED
Dimensions
|
PART NO.
(Aluminium & high temperature stainless steel) |
A
IN
(MM)
|
B
IN
(MM)
|
C
IN
(MM)
|
D
IN
(MM)
|
E
IN
(MM)
|
F
IN
(MM)
|
G
IN
(MM)
|
H
IN
(MM)
|
I
IN
(MM)
|
J
IN
(MM)
|
K
IN
(MM)
|
L*
|
|
30000
30000S 30000HTS 30000S-316L 30000HTS-316L |
0.75″ (19.0) |
1.00″ (25.5) |
1.00″ (25.5) |
3.94″ (100) |
1.95″ (49.5) |
0.55″ (14.0) |
N/A | N/A | N/A | N/A | 1.97″ (50.0) |
1/4″ NPT |
|
30001
30001S, 30001T 30001TS 3001HTS 3001THTS 30001S-316L 30001HST-316L |
1.00” (25.4) |
1.38” (35.1) |
1.50” (38.1) |
4.88” (124) |
2.24” (56.8) |
0.75” (19.0) |
2.17” (55.0) |
0.73” (18.5) |
0.39” (10.0) |
1.58” (40) |
1.97” (50.0) |
¼” NPT |
|
30002
30002S, 30002T 30002TS 30002HTS 30002THTS 30002S-316L 30002HTS-316L |
1.25” (31.8) |
1.38” (35.1) |
1.50” (38.1) |
4.88” (124.0) |
2.49” (63.2) |
1.00” (25.4) |
2.21” (56.3) |
0.73” (18.5) |
0.39” (10.0) |
1.77” (45) |
2.17” (55.0) |
¼” NPT |
|
30003
30003S 30003T 30003TS 30003HTS 30003THTS ,30003S-316L 30003HTS-316L |
1.50” (38.1) |
1.38” (35.1) |
1.50” (38.1) |
4.875” (124) |
2.75” (69.9) |
1.125” (28.6) | 2.15” (54.5) |
0.89” (22.5) |
0.39” (10.0) |
1.58” (40) |
1.97” (50.0) |
3/8” NPT |
|
30004
30004S 30004T 30004TS 30004HTS 30004THTS 30004S-316L 30004HTS-316L |
2.00” (50.8) |
1.38” (35.1) |
1.5” (38.1) |
4.88” (124.0) |
3.21” (81.6) |
1.75” (44.5) |
2.39” (60.7) |
1.18” (30) |
0.39” (10.0) |
1.58” (40) |
1.97” (50.0) |
3/8” NPT |
| 30005,30005, 30005S 30005HTS |
2.5” (63.5) |
1.38” (35.1) |
1.5” (38.1) |
5.29” (134.5) |
3.94” (100.0) |
2.19” (55.6) |
– | – | – | – | 1.97” (50.0) |
3/8” NPT |
|
30006
30006S 30006TS 30006HTS 30006THTS |
3.0”
(76.2) |
1.58” (40) |
1.58” (40) |
5.59” (142.0) |
4.33” (110.0) |
2.68” (68.0) |
– | – | – | – | 1.97” (50.0) |
1/2″ NPT |
* BSP adaptors supplied upon request free of charge.
Top View
Performance
|
MODEL
|
Size Outside Diameter
inches (mm) |
Air Consumption
SCFM at 80 PSIG (SLDP at 5.5 BAR) |
Vacuum
inches H2O (KPG) |
|
30000/30000S/30000HTS/
30000S-316L/30000HTS-316L |
3/4″
(19mm) |
11
(303) |
-72
(-18) |
|
30001/30001S/30001T/30001TS/
30001HTS/30001THTS/ 30001S-316L/30001HST-316L |
1″
(25mm) |
15
(415) |
-42
(-11) |
|
30002/30002S/30002T/30002TS/
30002SHTS/30002HTS/ 30002S-316L/30002HTS-316L |
1 1/4 ”
(32mm) |
26
(730) |
-42
(-11) |
|
30003TS/30003THTS/30003THTS/
30003THTS/30003S-316L/ 30003HTS-316L |
1-1/2″
(38mm) |
33
(932) |
-39
(-9) |
|
30004/30004S/30004T/30004TS/
30004THTS/30004HTS/ 30004S-316L/30004HTS-316L |
2″
(51mm) |
45
(1270) |
-28
(-7) |
|
30005/30005S/30005HTS
|
2 1/2″
(63.5mm) |
58.5
(1655) |
-23.5
(-6) |
|
30006/30006S/30006HTS/30006TS/
30006THTS |
3″
(76mm) |
69
(1940) |
-14.7
(-4) |
