Mounting System
PRODUCT OVERVIEW
NEX FLOW MOUNTING SYSTEM FOR AIR BLADE AIR KNIVES & AMPLIFIERS – Flexible and Durable
Mounting Systems for air knives and amplifiers provide a convenient and flexible way to utilize the products for blow-off and cooling applications. All Mounting Systems are made of powder coated steel. One knob controls the infinite flexibility of the system and secures it in place after the air knife or amplifier is properly positioned. Optional magnetic base can secure it to a magnet accepting platform. Rugged and secure positioning.

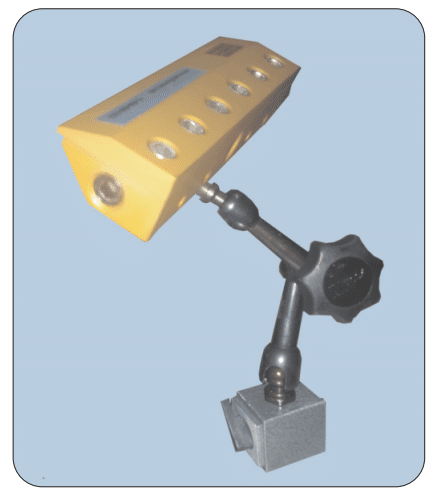

Secure air knives in place quickly and easily with precision mounting.
Air Blade Air Knife System comes complete with powder coated brackets and stainless steel mounting screws along with the mounting unit itself. Optional magnetic base, otherwise can secure by threading to a surface.

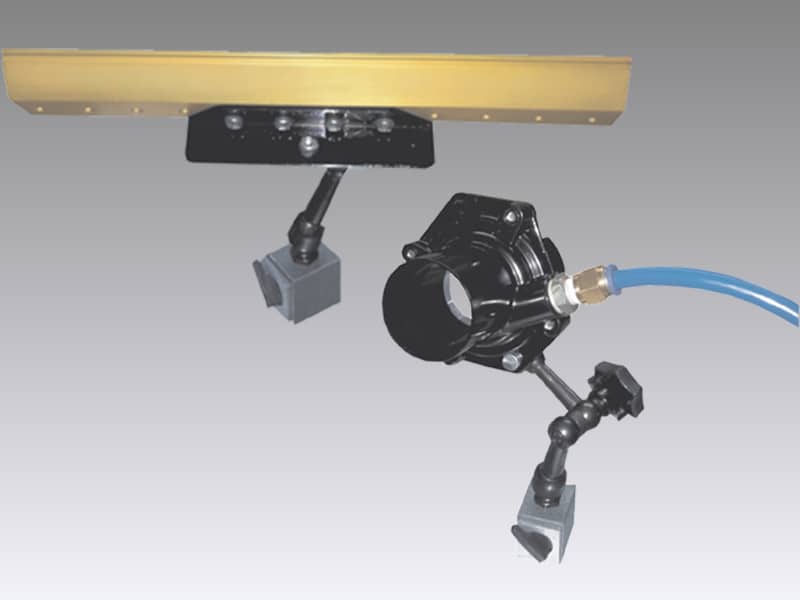

Air Amplifiers can also be securely and accurately placed using the mounting systems.
Standard Model AM10, AM20, and AM40 as well as adjustable Model 40001, and 40002 Air Amplifiers can also be mounted using the mounting arm. TM As with the Air Blade Air Knife System an optional magnetic base can be provided or the unit can be secured by threading to a surface.
FEATURES
- Flexible and Durable
- Easy to use and install
- Powder Coated Steel
- Optional Magnetic Base
BENEFITS
- Infinite flexibility
- Designed for Factory Environments
DIMENSIONS

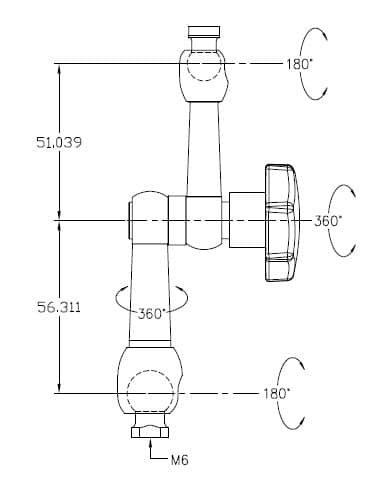

Model NF60003

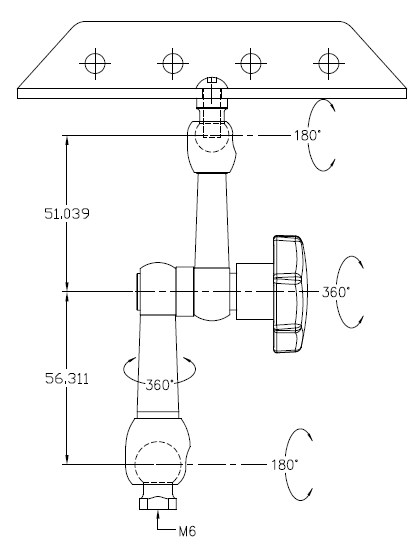

Model NF60003 X-Stream™ Air Blade bracket Model 10997X
Model MG60003 Holder Only
Model MG60003 + X-Stream™ Air Blade bracket Model 10997

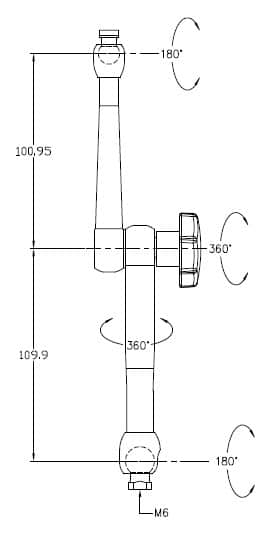

Model DG60003 Holder Only

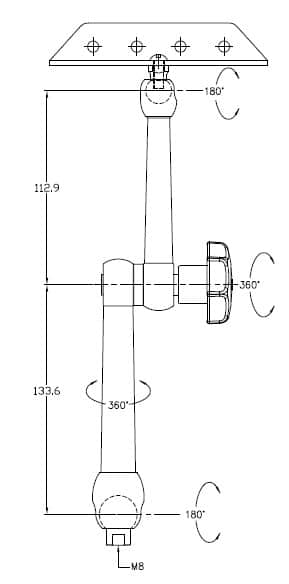

Model DG60003 + X-Stream™ Air Blade bracket Model 10997X

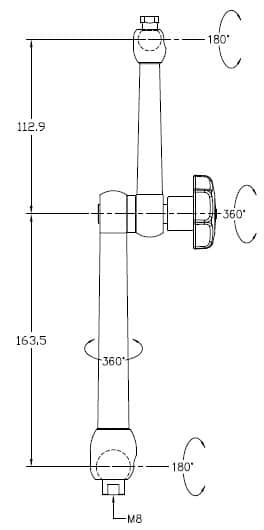

Model MG70003 Holder Only

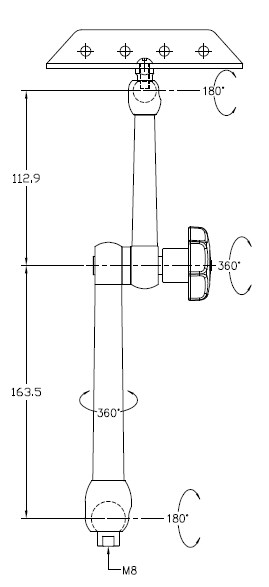

Model MG70003 X-Stream™ Air Blade bracket Model 10997X
MOUNTING SYSTEMS FOR X-STREAM AIR BLADES
| PART NO. | DESCRIPTION | Size | Price US Dollars |
|---|---|---|---|
| 10991X1 | System for 6″ to 18″ aluminum and 6″ to 15″ stainless steel – NF60003 + Bracket + screws | $196.00 | |
| 10991X2 | Dual system for aluminum 24″ to 54″ – 2 sets NF60003 + 2 Brackets + screws | $392.00 | |
| 10992X1 | System for 18″ stainless steel – DG60003 + Bracket + screws | $241.00 | |
| 10992X2 | Dual System for 24″ to 36″ stainless steel – 2 sets DG60003 + 2 Brackets + screws | $482.00 | |
| 10993X2 | Dual System for 42″to 48″ stainless steel – 2 sets MG60003+ 2 brackets + screws | $602.00 | |
| 10994X2 | Dual System for 54″ stainless steel – 2 sets MG70003+ 2 brackets + screws | $650.00 |
MOUNTING SYSTEMS FOR STANDARD AIR BLADES
| PART NO. | DESCRIPTION | Size | Price US Dollars |
|---|---|---|---|
| 10991A1 | System for 6″ to 18″ aluminum and 6″ to 15″ stainless steel – NF60003 + Bracket + screws | $196.00 | |
| 10991A2 | Dual system for aluminum 24″ to 54″ – 2 sets NF60003 + 2 Brackets + screws | $392.00 | |
| 10992A1 | System for 18″ stainless steel – DG60003 + Bracket + screws | $241.00 | |
| 10992A2 | Dual Systems for 24″ to 36″ stainless steel – 2 sets DG60003 + 2 Brackets + screws | $482.00 | |
| 40001MTS-MS | System for 40001 and 40001G and 40001S – NF60003 + 40001MTS + screw | $179.00 | |
| 40002MTS-MS | System for 40002 and 40002G and 40002S – NF60003 + 40001MTS + screw | $191.00 |
MOUNTING SYSTEMS FOR AIR AMPLIFIERS
| PART NO. | DESCRIPTION | Size | Price US Dollars |
|---|---|---|---|
| AMMS | System for AM10, AM20, AM40 – NF60003 + screw | $161.00 |
OPTIONAL ITEMS
| PART NO. | DESCRIPTION | Size | Price US Dollars |
|---|---|---|---|
| DG0036-AD6060 | Optional mounting magnet for Air Blade Mounting System 10991X1, 10991X2 | $75.00 | |
| (Need two for 10991X2) and 10992X1 and 10992X2 (need two for 10992X2) | |||
| DG0036-AD8080 | Optional mounting magnet for Air Blade Mounting Systems 10993X2 and | $75.00 | |
| 10994X2 (Need two for 10993X2 and 10994X2) | |||
| NF60003 | Mounting arm only for 10991X1 and 10991X2 | $160.00 | |
| DG60003 | Mounting arm only for 10992X1 and 10992X2 | $205.00 | |
| MG60003 | Mounting arm only for 10993X2 | $265.00 | |
| MG70003 | Mounting arm only for 10994X2 | $289.00 | |
| 10999X | Bracket Only plus Screws (5) | $36.00 | |
| 10998X | Screws Only (5 screws per kit) – EACH | $10.00 | |
| 10997X | Bracket Only for X-stream air blade | $26.00 | |
| 10999 | Bracket for Standard Air Blade (on special order) plus srews (5) | $36.00 | |
| 10997 | Bracket Only for Standard air blade | $26.00 | |
| MS | Spare Screw for Amplifier Mounting System | $1.00 | |
| 40001MTS | Mounting Bracket for Model 40001, 40001G and 40001S | 1-1/4″ | $18.00 |
| 40002MTS | Mounting Bracket for Model 40002, 40002G and 40002S | 2″ | $30.00 |
Prices are in USA dollars – ex works Cincinnati, OH, USA for orders in USA
Richmond Hill, ON, Canada for International orders.
