Ring Blade™ Air Wipe Blowoff Systems

PRODUCT OVERVIEW

The Nex Flow’s Ring Blade TM Air Wipe produces an even 360 degree blow off around the part, light in weight and compact. Easy to install and maintain and allows removal of a continuous piece. Reduces compressed air use for energy savings plus lower noise levels. Maintenance free with output easily controlled.

Designed as two pieces hinged together to open and close around the part. Instant on-off with no moving parts The 360 Degree Air Wipe System produces a “laminar” flow of air along its 360º angle using the “Coanda” effect which “entrains” a large volume of air from the surrounding area along with the small amount of compressed air from the Air Wipe System to produce an output flow up to 30 times

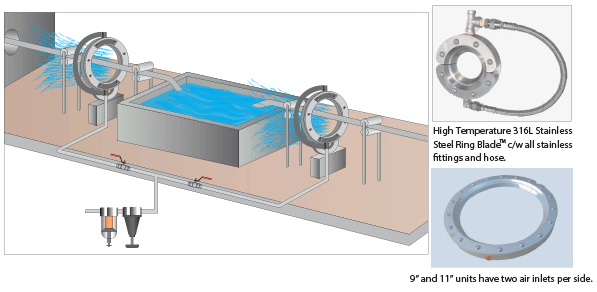

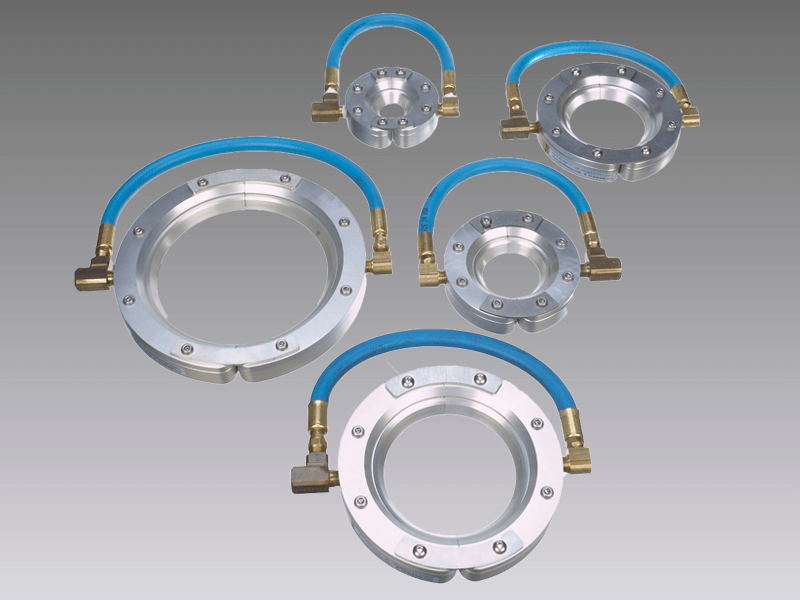

Available in 10 standard (inside) diameters AND in 3 versions:

  • 1/2″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 1/2” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 1/2″ – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 1″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 1” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 1” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 2″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 2” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 2” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 3″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 3” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 3” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 4″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 4” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 4” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 5″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 5” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 5” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 6″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 6” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 6” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 7″ – Standard Anodized Aluminum with Brass Fittings & Rubberized Plastic Hose
  • 7” – X-Stream Anodized Aluminum with Brass Fittings & Stainless Steel hose for moderate temperatures up to 400 degrees F (204 degrees C)
  • 7” – X-Stream 316L Stainless Steel with Stainless Steel Fittings and Hose for high temperatures up to 800 degrees F (427 degrees C) and corrosive environments
  • 9” – X-Stream Anodized Aluminum for moderate temperatures up to 400 degrees F (204 degrees C) – 4 inlet connections, no hose
  • 11” – X-Stream Anodized Aluminum for moderate temperatures up to 400 degrees F (204 degrees C) – 4 inlet connections, no hose

Special diameters for the Air Wipe Blow-Off System – X-Stream™ Ring Blade™ are available on special request from Nex Flow™.

Air Wipe Blow-Off System – X-Stream™ Ring Blade™ comes with a standard .002″ outlet gap which will work for 90% of all applications encountered.

If greater force is required, a second .002″ (.05mm) shim may be installed to open the gap for greater flow. Materials of construction anodized aluminum or 316L stainless steel.

APPLICATIONS

  • Drying after wash, cleaning, plating or coating
  • Blowoff dust and contaminants
  • Cool hot extruded shapes
  • Uniformly wipe surfaces
  • Dry extruded profiles, rod and medical tubing
  • Blow excess water from automotive door gaskets
  • Remove excess coatings, water and oil
  • Dry tube, hose, wire, fiber optics
  • Clean paint gun tips
  • Dry screen printed or ink jetted surfaces
  • Clean strips and ribbon

ADVANTAGES

  • Quiet
  • Low air consumption
  • Uniform airflow across the entire diameter
  • No electricity, no moving parts
  • Non-contact – no wiper blade
  • Lightweight, low profile
  • Split design – compact, rugged, easy to install
  • Stainless steel hardware resists corrosion

VIDEOS

PERFORMANCE

Air Consumption

Size (Internal) Dianeter In Inches (mm) Air Consumption per unit with std. .002″ (.05mm) gap Air Consumption per unit. with .004″ (.10mm)gap (shim added) Sound Level @3FT dBA
½” (12.7mm) 14 (396) 28 (793) 75
1″ (25.4mm) 19 (538) 38 (1076) 76
2″ (50.8mm) 30 (850) 60 (1699) 77
3″ (76mm) 40 (1132) 80 (2265) 79
4″ (102mm) 51 (1444) 102 (2888) 81
5″ (127mm) 60 (1700) 120 (3398) 82
6″ (152mm) 71 (2010) 142 (4021) 84
7″ (178mm) 80 (2266) 160 (4532) 85
9″ (229mm) 102 (2880) 204 (5760) 87
11″ (279mm) 123 (3480) 246 (6560) 89

Based on an Amplification Ratio of 30:1 the air flow out would be 30 times the above.

DIMENSIONS
